Leva para bloqueo de leva

Inicio / Catálogo / Cerraduras (pestillo 1/4 de vuelta) / Composiciones: Cuerpo - Insertos - Levas de bloqueo / Leva para bloqueo de leva

Descripción

Las cerraduras de leva están compuestas de 3 elementos principales que deben pedirse por separado: EL CUERPO - EL INSERTO y LA LEVA

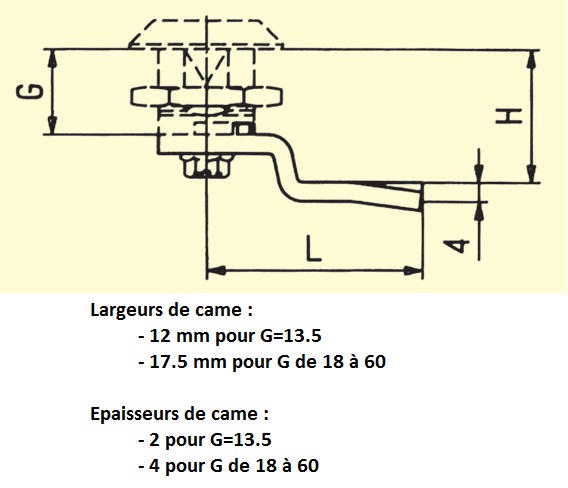

G : 18	G : 30	G : 36	G : 40	G : 50	G : 60	L	ACERO GALVANIZADO	ACERO INOXIDABLE
H=2	H=14	H=20	H=24	H=34	H=44	40	0.20.0520.0
H=3	H=15	H=21	H=25	H=35	H=45	45	0.20.0537.0
H=3	H=15	H=21	H=25	H=35	H=45	50	0.20.1503.0
H=4	H=16	H=22	H=26	H=36	H=46	45	0.20.0519.0	0.24.0519.0
H=6	H=18	H=24	H=28	H=38	H=48	45	0.20.0565.0	0.24.0565.0
H=8	H=20	H=26	H=30	H=40	H=50	45	0.20.0539.0	0.24.0539.0
H=10	H=22	H=28	H=32	H=42	H=52	45	0.20.0540.0	0.24.0540.0
H=11	H=23	H=29	H=33	H=43	H=53	45	0.20.0576.0
H=12	H=24	H=30	H=34	H=44	H=54	40	0.20.0521.0
H=12	H=24	H=30	H=34	H=44	H=54	45	0.20.0522.0	0.24.0522.0
H=13	H=25	H=31	H=35	H=45	H=55	45	0.20.0541.0	0.24.0541.0
H=14	H=26	H=32	H=36	H=46	H=56	40	0.20.0523.0
H=15	H=27	H=33	H=37	H=47	H=57	28	0.20.1501.0
H=15	H=27	H=33	H=37	H=47	H=57	49	0.20.0571.0
H=16	H=28	H=34	H=38	H=48	H=58	40	0.20.0525.0
H=16	H=28	H=34	H=38	H=48	H=58	45	0.20.0524.0	0.24.0524.0
H=18	H=30	H=36	H=40	H=50	H=60	34	0.20.0542.0	0.24.0542.0
H=18	H=30	H=36	H=40	H=50	H=60	40	0.20.0526.0	0.24.0526.0
H=18	H=30	H=36	H=40	H=50	H=60	45	0.20.0560.0	0.24.0560.0
H=18	H=30	H=36	H=40	H=50	H=60	50	0.20.0579.0
H=18	H=30	H=36	H=40	H=50	H=60	55	0.20.0580.0
H=19	H=31	H=37	H=41	H=51	H=61	45	0.20.0581.0
H=20	H=32	H=38	H=42	H=52	H=62	34	0.20.0543.0
H=20	H=32	H=38	H=42	H=52	H=62	40	0.20.0528.0
H=20	H=32	H=38	H=42	H=52	H=62	45	0.20.0527.0	0.24.0527.0
H=20	H=32	H=38	H=42	H=52	H=62	49	0.20.0572.0
H=22	H=34	H=40	H=44	H=54	H=64	31	0.20.0575.0
H=22	H=34	H=40	H=44	H=54	H=64	34	0.20.0564.0	0.24.0564.0
H=22	H=34	H=40	H=44	H=54	H=64	40	0.20.0530.0
H=22	H=34	H=40	H=44	H=54	H=64	45	0.20.0531.0	0.24.0531.0
H=24	H=36	H=42	H=46	H=56	H=66	40	0.20.0532.0
H=24	H=36	H=42	H=46	H=56	H=66	45	0.20.0544.0	0.24.0544.0
H=26	H=38	H=44	H=48	H=58	H=68	40	0.20.0534.0
H=26	H=38	H=44	H=48	H=58	H=68	45	0.20.0545.0	0.24.0545.0
H=27	H=39	H=45	H=49	H=59	H=69	36	0.20.0546.0
H=28	H=40	H=46	H=50	H=60	H=70	34	0.20.0547.0
H=28	H=40	H=46	H=50	H=60	H=70	45	0.20.0548.0	0.24.0548.0
H=30	H=42	H=48	H=52	H=62	H=72	45	0.20.0538.0	0.24.0538.0
H=32	H=44	H=50	H=54	H=64	H=74	30	0.20.0549.0
H=32	H=44	H=50	H=54	H=64	H=74	32	0.20.0567.0
H=32	H=44	H=50	H=54	H=64	H=74	33	0.20.0533.0	0.24.0533.0
H=32	H=44	H=50	H=54	H=64	H=74	35	0.20.0550.0
H=32	H=44	H=50	H=54	H=64	H=74	45	0.20.0551.0	0.24.0551.0
H=33	H=45	H=51	H=55	H=65	H=75	45	0.20.0535.0
H=34	H=46	H=52	H=56	H=66	H=76	25	0.20.0552.0
H=34	H=46	H=52	H=56	H=66	H=76	45	0.20.0554.0	0.24.0554.0
H=36	H=48	H=54	H=58	H=68	H=78	45	0.20.0556.0	0.24.0556.0
H=36	H=48	H=54	H=58	H=68	H=78	57	0.20.0563.0
H=38	H=50	H=56	H=60	H=70	H=80	27	0.20.0557.0
H=38	H=50	H=56	H=60	H=70	H=80	45	0.20.0558.0	0.24.0558.0
H=40	H=52	H=58	H=62	H=72	H=82	35	0.20.0559.0
H=40	H=52	H=58	H=62	H=72	H=82	45	0.20.0561.0	0.240.0561.0
H=42	H=54	H=60	H=64	H=74	H=84	32	0.20.0568.0
H=42	H=54	H=60	H=64	H=74	H=84	45	0.20.0566.0	0.24.0566.0
H=45	H=57	H=63	H=67	H=77	H=87	45	0.20.0562.0	0.24.0562.0
H=46	H=58	H=64	H=68	H=78	H=88	45	0.20.0573.0
H=51	H=63	H=69	H=73	H=83	H=93	50	0.20.0555.0
H=551	H=67	H=73	H=77	H=87	H=97	45	0.20.1502.0

* Artículos fabricados bajo petición
