Mousqueton

Accueil / Catalogue / Elingages / Arrimages / Anneaux d'Elingage / Mousqueton

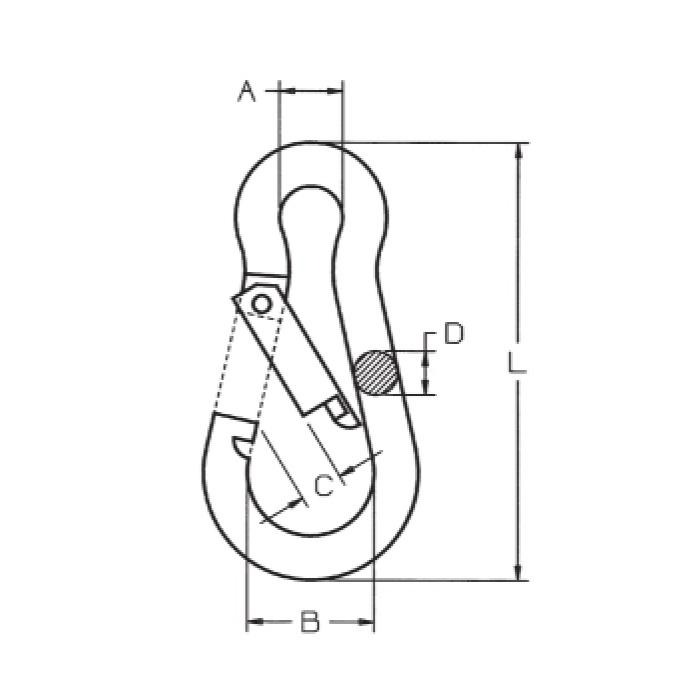

MATIERE	DIMENSION (mm)	A (mm)	B (mm)	C (mm)	D (mm)	L (mm)	F MAX(Kg)	POIDS (kg)	REFERENCES
Acier zingué	4x40	7	14	6	4	40	20	0.007	MO.068040
Acier zingué	5x50	8	15	7	5	50	30	0.015	MO.068050
Acier zingué	6x60	9	17	8	6	60	40	0.020	MO.068060
Acier zingué	7x70	10	19	8	7	70	60	0.040	MO.068070
Acier zingué	8x80	12	23	10	8	80	75	0.060	MO.068080
Acier zingué	9x90	12	24	10	9	90	100	0.090	MO.068090
Acier zingué	10x100	15	29	11	10	100	120	0.110	MO.068100
Acier zingué	11x120	18	36	16	11	120	140	0.190	MO.068110
Acier zingué	12x140	20	40	19	12	140	140	0.200	MO.068120
Acier zingué	13x160	22	54	23	13	160	200	0.360	MO.068130

* Articles fabriqués sur demande
